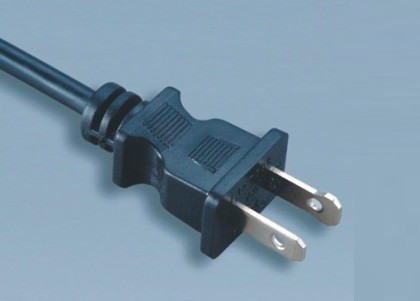

Product name : America 2 prong ac power cord
Item : YY-2IV
YY-2IV(N1-15P) America 2 prong ac power cord plug Rated up to 15A 125V Built to North America NEMA 1-15P standards and designed for 2 prong America power cord applications,Our America UL CSA power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.
America 2 prong ac power cord
2/14 SJT, SJTW, SJTOW, SJTO 15/125
2/16 SJT, SJTW, SJTOW, SJTO, SVT, SPT-2, NISPT-2, HPN 13/125
2/17 SVT 12/125
2/18 SPT-2, NISPT-2, HPN, SVT, SJT, SJTW, SJTOW, SJTO 10/125
NEMA 1-15P polarized USA two prong power cord plug with cUL approval. Built to NEMA 1-15P standards. Rated up to 15A 125V, 13A 125V or 10A 125V. Our NEMA 1-15P polarized plugs are fully molded with a low profile ergonomic design and come in a big variety or orientations, sizes and angles.
| Connector Standard: | NEMA 1-15P |
| Maximum Current rating: | 10A 15A |
| Maximum Voltage: | 125V 250V |
| Number of Poles and Wires: | 2 poles, 2 wires |
| Available Wire Thickness: | 14 through 18AWG |
| Outer Mold Material: | PVC |
| Blade Material: | Nickel coated Brass |
| Flamability Rating: | UL 94V-0 |
| color: | black is standard but any color available |
| Temperature Rating: | minus 40C though plus 75C 105C |
| Approvals: | cUL CSA |
| Environmental Certifications: | RoHS |
| Testing: | Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
| 18/2 | SPT-1, SPT-2, SPT-3, SVT, SVTO, SJT, SJTW, SJTO, SJTOW (All TPE material), SPT-1, SPT-1W, NISPT-1, SPT-2, SPT-2W, | 10/125 |
| NISPT-2, SPT-3, HPN, SVT, SVTO, SJT, SJTW, , SJTO, SJTOW, | ||
| SV, SVO, SJ, SJO, SJOW, SJOOW, EVT, EVJT, EVE, EVJE | ||
| 17/2 | SVT, SVTO (All TPE material), SVT, SVTO, SV, SVO, SJ, SJO, | 12/125 |
| SJOW, SJOOW, EVT, EVJT, EVE, EVJE | ||
| 17/2 | SPT-2, SPT-3, NISPT-2, SVT, SVTO, SJT, SJTW, SJTO, SJTOW | 13/125 |
| (All TPE material), SPT-2, SPT-2W, NISPT-2, SPT-3,SVT, | ||
| SVTO, SJT, SJTW, SJTO, SJTOW, SV, SVO, SJ, SJO, SJOW, | ||
| SJOOW, EVT, EVJT, EVE, EVJE | ||
| 16/2 | HPN | 15/125 |
| 14/2 | SPT-3, SJT, SJTW, SJTO, SJTOW (All TPE material), SPT-3, SJT, | 15/125 |
| SJTW, SJTO, SJTOW, SJ, SJO, SJOW, SJOOW, EVT, EVJT, EVE, | ||
| EVJE |
|
|
