FEV ELECTRONICS CO.,LIMITED
8 Years
| Ask Lasest Price | |
| Brand Name : | FEV |
| Model Number : | NEMA 5-15P |
| Certification : | UL CUL CSA |
| Price : | USD 0.5-3.5 / PCS |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 100000PCS/Month |
| Delivery Time : | 15 Working Days |

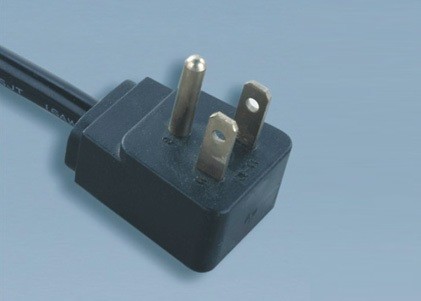

Product name : America 3 prong NEMA 5-15P electrical cord
Item : YY-3D
YY-3D 5-15P America 3 prong electrical cord plug with UL CSA certification Rated up to 15A 125V Built to NEMA standard and designed for any 3 prong North America power cord applications,Our America UL CSA power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.
America 3 prong electrical cord
3/14 SPT-3 15/125
Model Number:, YY-3D, Max Voltage:, 125V, Max.Amps:, 15A,
Approval:, UL cUL, Engineer drawings/Samples:, Available
America 3 prong electrical cord drawing
| Male Plug: | NEMA 5-15P |
| Oringal | China |
| Wire Jacket Standard: | SJTW/SJTOW/SJTOOW SJT/SJTO/SJTOO SJ/SJO/SJOW |
| Gauge: | 18 AWG/16AWG/14AWG |
| Conductors: | 3 Wire |
| Jacket Material: | PVC |
| Temperature Rating: | Up to 105C |
| Wire Outer Diameter: | Optional |
| Conductor Color Code: | Black, White and Green / NACC (North American color code) |
| Voltage: | 125V 250 Volts AC |
| Amperage: | Up to 10 Amps 15Amp |
| Cord Length: | Optional |
| Color: | Black |
| Testing: | 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. |
| Certifications: | UL/cUL Listed, CSA |
| Environmental Compliance: | RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008 |
| Country of Origin: | China |
|
|
