Product name : UL CSA certified 50A North America power cords
Item : LA009C
LA009C,14-50P UL CSA certified 50A North America power cords products Rated up to
50A 250V Built to US NEMA standard and designed for 4 prong 50Amps
North America heavy duty power cord applications,Our America UL CSA
power cord products are fully molded with a low profile ergonomic
design and RoHS and REACH compliant.

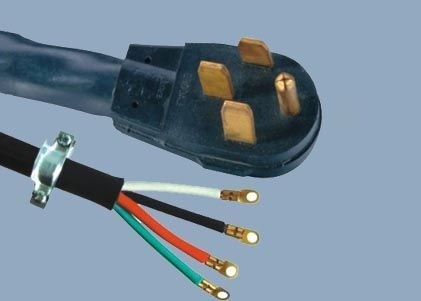

UL CSA certified 50A North America power cords
14-50P plug, NEMA 14-50P Power supply cord with UL CSA approval
Rating: 50A 250V
Tech Specs
1) Standards: NEMA 14-50P, 3-pole 4-wire Dryer Cord 14-50P
2) Applicable cables:
10/3 SRDT 8/3 SRDT 6/3 SRDT 8/2+10/1 SRDT 6/2+8/1 SRDT
| Connector Standard: | NEMA 14-50P 4P down angle plug |
| Maximum Current rating: | 50A |
| Maximum Voltage: | 250V or 125V |
| Number of Poles and Wires: | 3 poles, 4 wires |
| Available Wire Thickness: | 6/2 + 8/2 through 12AWG |
| Outer Mold Material: | 35P PVC |
| Blade Material: | Brass |
| Flamability Rating: | UL 94V-0 |
| color: | black is standard but any color available |
| Temperature Rating: | minus 40C though plus 75C |
| Approvals: | cUL |
| Environmental Certifications: | RoHS, REACH |
| Testing: | Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
NEMA 14-50P molded heavy duty four prong power cord plug with cUL approval. Rated up to 50A 250V. Built to the NEMA 14-50P standard, this plug is most commonly used for electric vehicles, RVs and electric ranges. Our NEMA 14-50P plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant.
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
| 12/4 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW (All TPE material), SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, | 20/125/250 |
| SJOO, SJOOW, SO, SOW, SOOW, EVT, EVJT, EVE, EVJE | ||
| 10/4 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW (All TPE material), | 25/125/250 |
| SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, | ||
| SJOO, SJOOW, SO, SOW, SOOW, EVT, EVE | ||
| 10/4 | DRT (Round) | 30/125/250 |
| 8/2 + 10/2 | DRT (Round) | 40/125/250 |
| 6/2 + 8/2 | DRT (Round) | 50/125/250 |
|
|
